AMPIRE Smartphone 1DIN radio, 6.38'' Display, DAB+, 2 AHD camera inputs

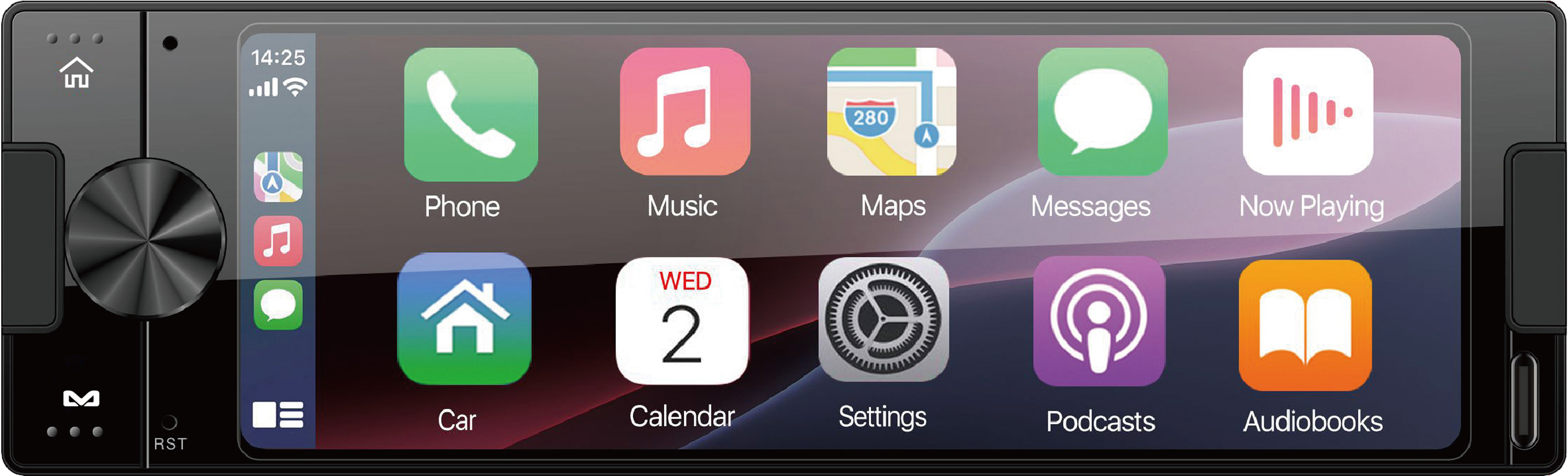

AMPIRE CPR60: The ultimate 1-DIN car radio for modern classics and vintage cars

Give your classic car a modern infotainment upgrade without compromising its original charm! The AMPIRE CPR60 car radio is the first of its kind in true 1-DIN format (display dimensions 188 x 57 mm) with wireless Apple CarPlay and Android Auto. You can operate the CPR60 safely and blindly using the volume control, push buttons, or an optional steering wheel remote control. The large icons on the touchscreen allow you to navigate easily through the minimalist operating concept of Apple CarPlay and Android Auto.

Perfect integration in classic 1-DIN format no more costly conversions!
The CPR60 was developed specifically for modern classics and vintage cars. With its compact dimensions (188x57mm and only 120mm installation depth), it fits perfectly and without damage into any standard 1-DIN radio slot. The minimalist look of the front panel blends harmoniously into any dashboard.

Wireless smartphone integration & modern entertainment - Experience the latest generation of connectivity:
- Wireless CarPlay & Android Auto: Connect your compatible smartphone wirelessly* and use navigation, music streaming (Spotify, Apple Music), and messaging directly via the car radio's large 6.38" (162 mm) touchscreen display.
- Best radio reception: Enjoy crystal-clear sound thanks to the high-quality DAB+ receiver and classic FM reception.
- Antenna tip: With the optional DAB+ antenna splitter (DAB1), you can use your existing FM antenna for DAB+ in most cases. Alternatively, a DAB+ window adhesive antenna (DAB2-SMB) is available. The SMB input for DAB+ has phantom power for active antennas.

Full control & versatile connections - The CPR60 offers more than just music:
- Safe parking: Two video inputs support optional front or rear cameras in high-resolution AHD quality (also CVBS compatible).
- Multimedia center: Connect additional sources (e.g., TV tuner, DVD player) via the AV input.
- Additional monitor: A video output (CVBS) also allows the display content to be played back on an external monitor.
- Hands-free phone: Thanks to the integrated BT hands-free system with microphone integrated in the front panel, you can make calls safely while driving.
- Microphone: An external microphone is available as an option for even better voice quality.
- BT audio streaming (A2DP): naturally supported.

Sound upgrade and easy control - Get more out of your new car radio
- Powerful sound: the integrated 4x48 watt amplifier delivers powerful sound for your existing speakers.
- Expandable sound system: Three stereo preamplifier outputs (pre-outs) are available for connecting optional power amplifiers for ambitious audio projects.
- Steering wheel control: The car radio supports control via some factory steering wheel remote controls with resistance matrix (connection and programming by qualified personnel required).

Charging and playback functions - USB offers even more
- USB-C socket: On the front panel, you will find a USB-C socket for fast charging of your smartphone.
- USB-A socket: On the rear panel, a USB-A socket allows you to play various audio and video formats from a USB stick. To ensure that you have access to this USB port after installation, we recommend that you order an optional USB built-in socket as an accessory at the same time.

Treat your classic car to state-of-the-art technology with the AMPIRE CPR60 the perfect fusion of historic looks and digital convenience!

Features
- Touchscreen color display with 16.21 cm (6.38") screen diagonal
- Wireless Apple CarPlay and Android Auto
- USB-A socket with max. 1.5A output current on the rear of the device for various USB media. Supported formats:
Formatting: FAT32, NTFS, EXFAT
Audio: AAC, APE, FLAC, ATRC, ANR, ALAC, M4A, MP3, OGG Vorbis, COOK, WMA
Video: 1080P, ASF, AVI, DAT, FLV, Sorenson, VOB, M4V, 3GP, H.263, H.264, H.265, MKV, PMP, MPG, MPEG1, MPEG2, MPEG4, MOV, MP4, TS/TP, RMVB, RV8/9/10, VC1 (720x576), M2TS
Images: JPEG, JPG, BMP, PNG
- USB-C charging port with max. 3A output current on the front of the device
- Max. 4x 48 watt amplifier output power
- BT receiver for A2DP audio streaming
- BT hands-free kit via integrated microphone
- DAB+ radio receiver with FM and RDS functions
- A real volume control and control buttons support the giant touchscreen.

Connections
ISO power supply connector (8-pin)
ISO speaker connector (8-pin)
Accessory connector (8-pin)
RCA (orange) camera input for front camera (CVBS/AHD compatible)
RCA (yellow) camera input for rear camera (CVBS/AHD compatible)
RCA (yellow) video output (CVBS)
RCA (red/white) preamplifier output (front)
RCA (red/white) preamplifier output (rear)
RCA (green/green) adjustable preamplifier output (subwoofer) 50/80/120Hz
RCA AV input (CVBS/AHD) for TV tuner or DVD player
SMB antenna socket for DAB+ reception (phantom power)
DIN antenna socket for FM (150 ohms) (no phantom power)
3.5 mm jack socket for an optional hands-free microphone

Dimensions
Display 188x57mm
Installation depth 120mm

Scope of delivery
1 CPR60 car radio
1 ISO power connector (8-pin)
1 ISO speaker connector (8-pin)
1 accessory connector (8-pin)
2 removal keys

Smartphone compatibility
The minimum requirements for wireless use are an Apple CarPlay iPhone 5 or higher, or Android Auto Android 11, Android Auto 4.8 or higher, and 5GHz Wi-Fi. Some manufacturers, such as Samsung, have their own Android-based OS. Wireless use may not be possible with these.
